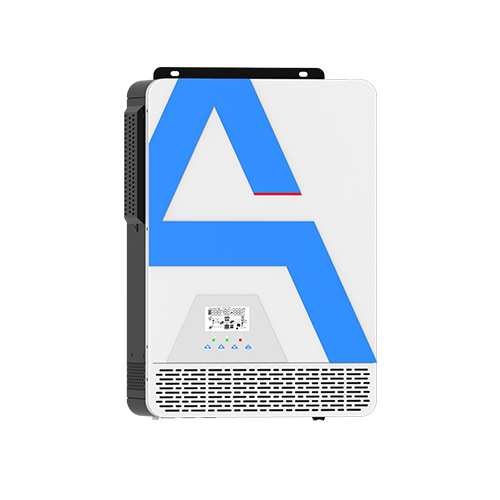

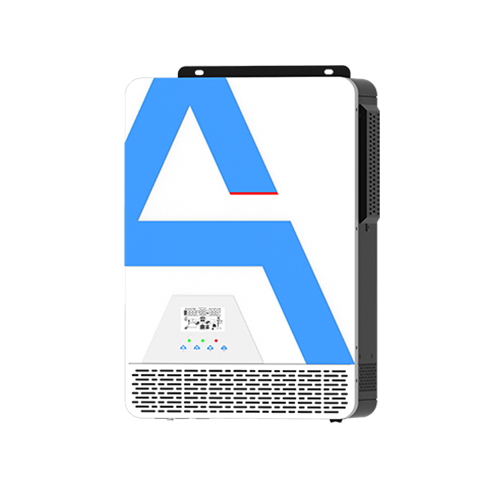

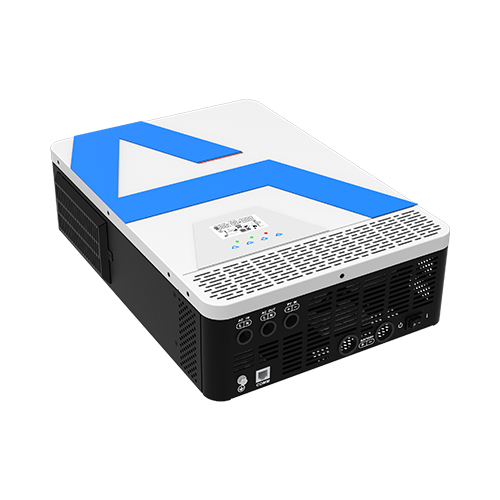

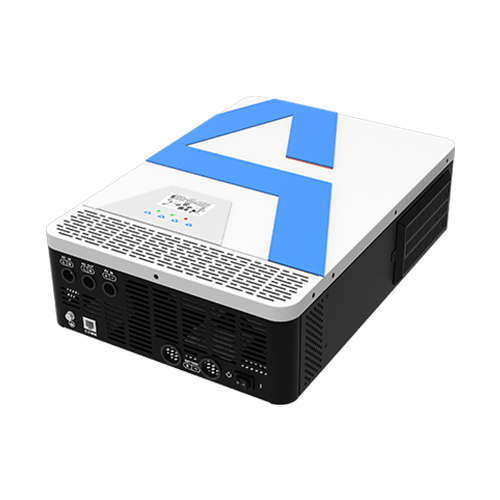

Intelligent Hybrid Solar Inverter 2KW&3.2KW

Anern's intelligent hybrid inverters are widely applicable in solar power systems and commercial applications. It features built-in MPPT technology for maximum solar energy harvest, supports a 140A solar AC charging current, and offers intelligent battery charging. Additionally, it supports WiFi control and enjoys the flexibility of time charging function. With Anern solar inverters, wholesalers can upgrade their products to meet the growing demand for renewable energy solutions.



Intelligent Hybrid Solar Inverter 2KW&3.2KW Parameter

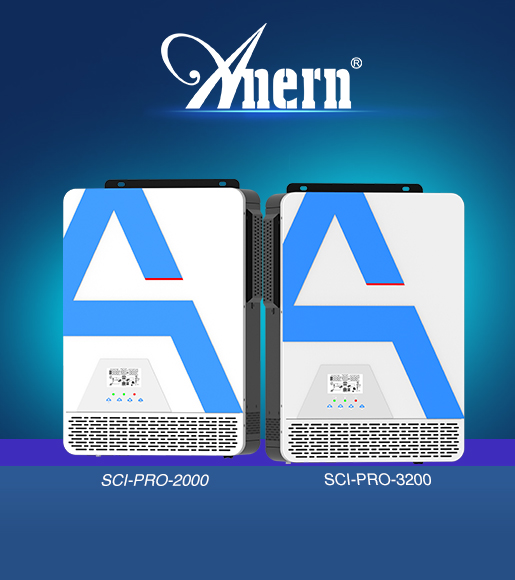

Model SCI-Pro-2000 SCI02-Pro-3200
Rated Power 2000VA/2000W 3200VA/3200W

AC INPUT

AC Input Voltage

230VAC
Selectable Voltage Range  170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
4000VA
6400VA
Efficiency (Peak) PV to Inverter
98%
Efficiency (Peak) Battery to Inverter
94%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage
13.5VDC
27VDC
Overcharge Protection
16VDC
33VDC
Maximum AC Charge Current
80A
SOLAR CHARGER
Maximum PV Array Power
2000W
3200W
MPPT Range @ Operating Voltage
20-150VDC
30-150VDC
Maximum PV Array Open Circuit Voltage
150VDC
Maximum Solar Charging Current
60A
PHYSICAL
Dimension: D x W x H (mm)
416*291*116mm
416*291*116mm
Net Weight (kg)
7.1
7.3
INTERFACE
Communication interface WIFI
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
DOperating Temperature –10°C - 50°C
Storage Temperature –15°C - 60°C


 Advantages Of Intelligent Hybrid Solar Inverter 2KW&3.2KW
  • Anern Patent Design
    Anern Patent Design

    Stable, efficient and maintenance-free product design concept.

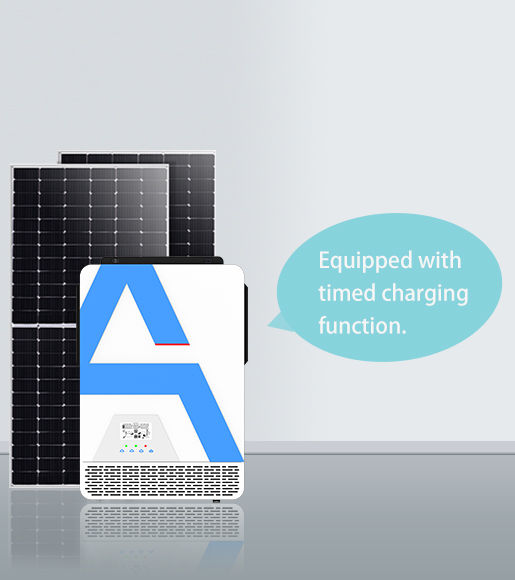

  • Equipped with timed charging function
    Timed Charging
    This inverter equips with timed charging function.

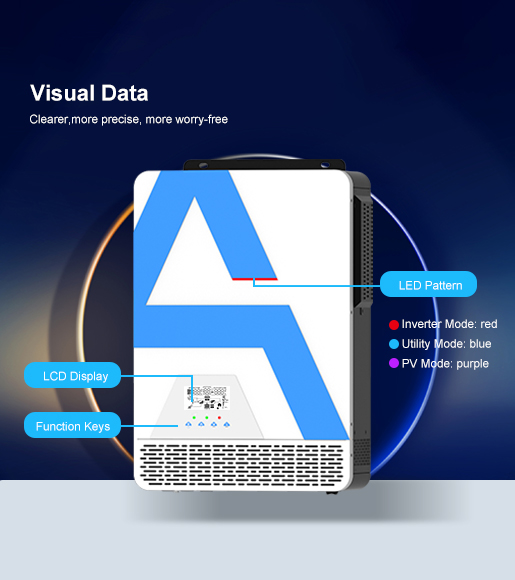

  • LED Pattern
    LED Pattern
    It will switch to display different colors in different working modes to monitor the machine operation at any time.









Work Principle
Hybrid solar inverter is an important power equipment, which can convert direct current into alternating current. It works by receiving the DC input module, and then converting it into high-frequency AC power through the inverter module, and monitoring the inverter module through the control module. At the same time, it can flexibly switch according to actual needs to achieve optimal energy efficiency and performance.

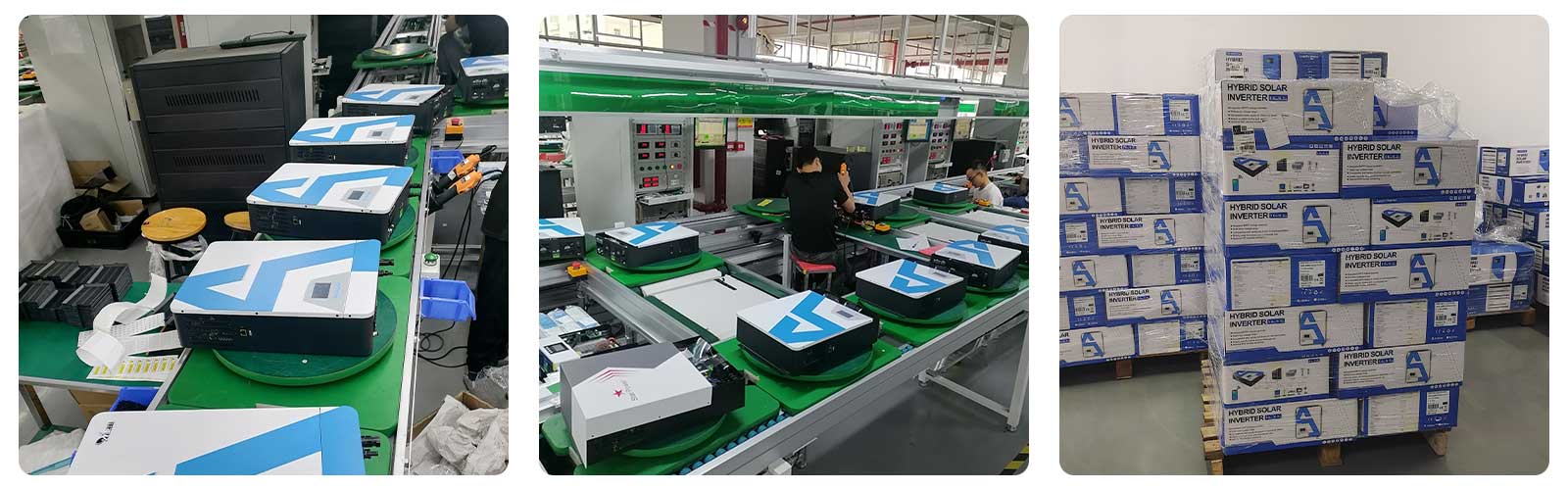

Intelligent Hybrid Solar Inverter 2KW&3.2KW Factory



Anern factory is equipped with advanced production equipment and skilled technical teams, focusing on technological innovation and product optimization. Anern continuously develops new hybrid solar inverter technologies to meet the energy conversion and control needs of our customers. Anern factory prioritizes quality as core value and customer satisfaction as goal, striving to provide high-quality products that meet the highest standards.



Wifi-Communicated Hybrid Solar Inverter Factory
