Monocrystalline Solar Panel

Monocrystalline solar panels are a kind of solar panels made of monocrystalline silicon cell. It has a unique crystal structure that makes its conversion efficiency very high. The module conversion rate is as high as 22%. Monocrystalline solar panels have a wide power range from 60W to 300W. Users can find the solar panels suitable for their power levels according to electricity needs. In addition, the monocrystalline solar panels are also equipped with a Junction Box with a protection degree of IP67 or above, which can effectively prevent the entry of external substances such as moisture and dust, thereby ensuring the stability and long-term use of the system.

Monocrystalline Solar Panel Parameter



Model ANM-60W ANM-100W ANM-150W
ANM-200W ANM-250W ANM-300W ANM-360W
PM(w) 50W 100W 150W
200W 250W 300W 360W
Maximum Power Voltage 18V 18V 18V
22.5V 36V 36V 36V
Maximum Power Current 2.78A 5.56A 8.33A
8.89A 6.94A 8.33A 10.00A
Open Circuit  Voltage 21.8V 20.5V 21.3V
26.6V 43V 41.50V 41.00V
Short Circuit Current 2.91A 6.25A 9.02A
9.42A 7.35A 9.26A 11.15A
Module Size 670*400*25mm 1080*450*25mm 1120*670*30mm
1470*670*30mm 1530*765*30mm 1680*880*30mm 1540*1134*30mm
Weight 3.4kg 6.2kg 7.9kg
10.5kg 12.5kg 14.6kg



Application for Practical Monocrystalline Solar Panel



Monocrystalline Solar Panel

Monocrystalline solar panels are available in different sizes and output parameters. Each type of panel has a variety of uses.

You can use our solar panels in a variety of common scenarios. These include:

◊ Rooftop: placing solar panels on your roof will generate electricity for your house. This will reduce dependence on fossil fuels and lower energy costs.

◊ Rural areas: 300w solar panels are extremely useful in areas where electricity is limited. They can be applied to power agricultural equipment. It also covers uses such as cabins, recreational vehicles and boats.

◊ Industrial & commercial environments: commercial and industrial buildings such as offices, warehouses and factories can use solar panels to generate power for their machinery.

◊ Public areas: solar energy can power public areas such as playgrounds, parks, streets, and other public areas, powering lighting and technical equipment.

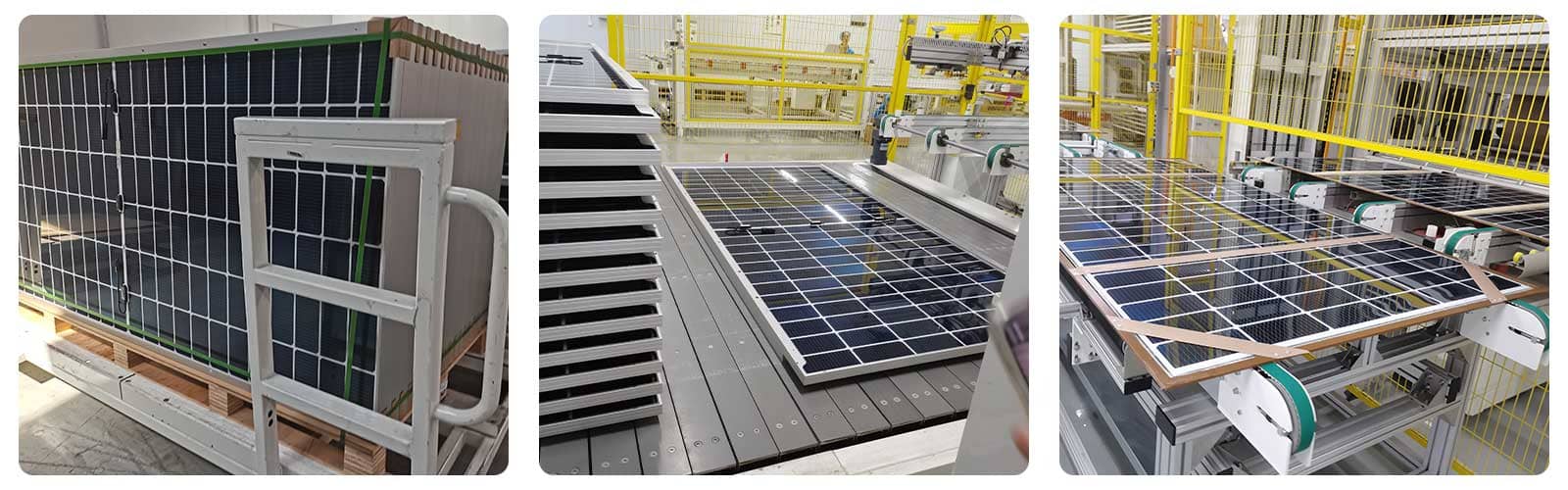

Monocrystalline Solar Panel Factory



The Anern factory not only utilizes world-leading production technology and innovative design, but is also dedicated to producing highly efficient and reliable Monocrystalline solar panels. Whether you are looking for a partner for renewable energy project, we can provide you with a full range of support and consulting services.
